1CM/1DM 公制螺紋膠墊密封

郵箱發(fā)送

產(chǎn)品詳情Product details

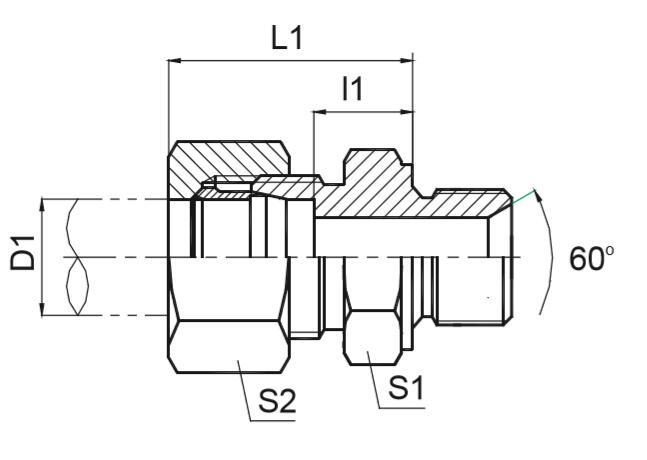

1CM/DM 公制螺紋膠墊密封

系列	代號 PART NO.	螺紋 THREAD		管子外徑 TUBE O.D	尺寸 DIMENSIONS						重量克/件	工作壓力 (bar)
系列	代號 PART NO.	E	F	D1	L1	L2	L3	L4	S1	S2	重量克/件	工作壓力 (bar)
L	1CM-12-10	M12X1.5	M10X1	06	23.5	8.5	8	23	14	14	13	500
	1CM-14-12	M14X1.5	M12X1.5	08	29	10	10	25	17	17	22	500
	1CM-16-14	M16X1.5	M14X1.5	10	30	11	11	26	19	19	29	500
	1CM-16-16	M16X1.5	M16X1.5	10	31.5	12.5	12	24	22	19	39	420
	1CM-16-18	M16X1.5	M18X1.5	10	31.5	12.5	12	27	24	19	49	400
	1CM-16-22	M16X1.5	M22X1.5	10	35	14	14	29	27	19	79	400
	1CM-18-14	M18X1.5	M14X1.5	12	30	11	11	26	19	22	30	400
	1CM-18-16	M18X1.5	M16X1.5	12	31.5	12.5	12	27	22	22	39	400
	1CM-18-18	M18X1.5	M18X1.5	12	31.5	12.5	12	27	24	22	46	400
	1CM-18-22	M18X1.5	M22X1.5	12	35	14	14	29	27	22	73	400
	1CM-22-16	M22X1.5	M16X1.5	15	32	13	12	28	24	27	50	400
	1CM-22-18	M22X1.5	M18X1.5	15	32.5	13.5	12	29	24	27	63	400
	1CM-22-22	M22X1.5	M22X1.5	15	36	15	14	30	27	27	75	400
	1CM-26-18	M26X1.5	M18X1.5	18	33.5	14	12	30	27	32	67	400
	1CM-26-22	M26X1.5	M22X1.5	18	36	14.5	14	31	27	32	72	400
	1CM-30-22	M30X2	M22X1.5	22	38	16.5	14	33	32	36	94	250
	1CM-30-26	M30X2	M26X1.5	22	40	16.5	16	33	32	36	100	250
	1CM-30-27	M30X2	M27X2	22	42	18.5	16	35	32	36	164	250
	1CM-36-33	M36X2	M33X2	28	43	17.5	18	34	41	41	275	250
	1CM-45-42	M45X2	M42X2	35	48	17.5	20	39	50	50	350	250
	1CM-52-48	M52X2	M48X2	42	52	19	22	42	55	60	355	250
S	1DM-14-12	M14X1.5	M12X1.5	06	32	13	10	28	17	17	41	800
	1DM-16-14	M16X1.5	M14X1.5	08	34	15	11	30	19	19	53	800
	1DM-18-16	M18X1.5	M16X1.5	10	34.5	15	12	31	22	22	59	800
	1DM-20-18	M20X1.5	M18X1.5	12	36.5	17	12	33	24	24	70	630
	1DM-20-22	M20X1.5	M22X1.5	12	39	17.5	14	34	27	24	100	630
	1DM-22-20	M22X1.5	M20X1.5	14	41	19	14	37	27	27	96	630
	1DM-24-18	M24X1.5	M18X1.5	16	38.5	18	12	36	27	30	86	630
	1DM-24-22	M24X1.5	M22X1.5	16	41	18.5	14	37	27	30	93	800
	1DM-30-27	M30X2	M27X2	20	47	20.5	16	42	32	36	147	420
	1DM-36-33	M36X2	M33X2	25	53	23	18	47	41	46	260	420
	1DM-42-42	M42X2	M42X2	30	57	23.5	20	50	50	50	415	420
	1DM-52-48	M52X2	M48X2	38	64	26	22	57	55	60	560	420

注：如需帶卡套及卡套螺母整套訂貨，則請在代號后加“RN”，如1CM-30-27/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example 1CM-30-27/RN.
