產品詳情Product details

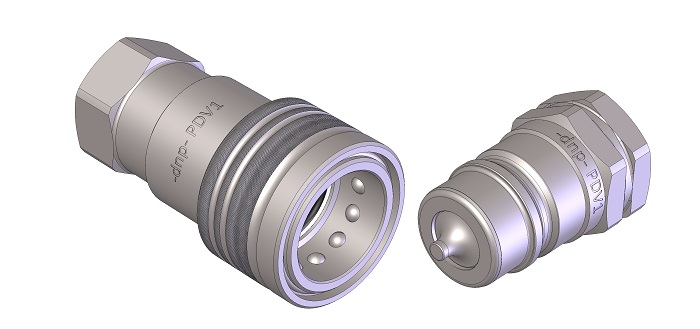

PDV1系列高壓快速接頭
|

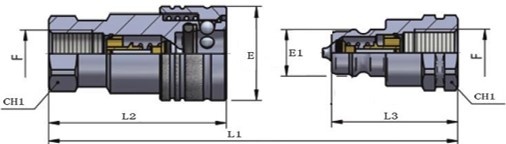

DN
|
CH1
|
E
|
E1
|
L1
|
L2
|
L3
|
標準流量L/M
|
最大流量L/M
|
工作壓力MPA
|
F
|
陰接頭.(F)
|
陽接頭.(M)
|
|
06
|
19
|
27
|
16.92
|
76.3
|
55.5
|
38
|
12
|
24
|
40
|
G 1/4
|
PDV1.0606.002
|
PDV1.0606.003
|
|
1/4 NPT
|
PDV1.0606.012
|
PDV1.0606.013
|
|
10
|
24
|
34
|
21.52
|
85.5
|
63
|
42.5
|
23
|
46
|
35
|
G 3/8
|
PDV1.1010.002
|
PDV1.1010.003
|
|
3/8 NPT
|
PDV1.1010.012
|
PDV1.1010.013
|
|
13
|
27
|
38
|
23.75
|
96.5
|
70
|
48
|
45
|
90
|
25
|
G 1/2
|
PDV1.1313.002
|
PDV1.1313.003
|
|
1/2 NPT
|
PDV1.1313.012
|
PDV1.1313.013
|
|
20
|
34
|
47
|
31.05
|
114.5
|
86
|
57
|
106
|
220
|
25
|
G 3/4
|
PDV1.2019.002
|
PDV1.2019.003
|
|
3/4 NPT
|
PDV1.2019.012
|
PDV1.2019.013
|
|
25
|
41
|
52
|
34.48
|
131.5
|
99
|
65.5
|
189
|
260
|
25
|
G 1
|
PDV1.2525.002
|
PDV1.2525.003
|
|
1 NPT
|
PDV1.2525.012
|
PDV1.2525.013
|
|
30
|
50
|
70
|
48.45
|
1.550
|
117
|
75
|
280
|
370
|
22
|
G 1-1/4
|
PDV1.3031.002
|
PDV1.3031.003
|
|
1-1/4 NPT
|
PDV1.3031.012
|
PDV1.3031.013
|
|
39
|
60
|
84
|
57.85
|
167.5
|
128
|
83.5
|
379
|
757
|
20
|
G 1-1/2
|
PDV1.3939.002
|
PDV1.3939.003
|
|
1-1/2 NPT
|
PDV1.3939.012
|
PDV1.3939.013
|
|
50
|
70
|
115
|
86.8
|
177.5
|
139
|
88.5
|
757
|
1000
|
10
|
G 2
|
PDV1.5051.002
|
PDV1.5051.003
|
|
2 NPT
|
PDV1.5051.012
|
PDV1.5051.013
|
產品應用Applications
PDV系列接頭是目前市場上最有名的。該系列特別適用于農機及普通的工業應用、接頭有一個隔斷閥，一般由碳鋼制成，安全系列：4：1
密封件：標準NBR丁腈橡膠密封圈及純聚四氟乙烯支撐環,主要替換品牌：Parker6600 Faster ANV Stucchi BIR
產品特征product features
材料:碳鋼、規格：1/4“-2”、螺紋：NPT，BSP（G）、表面處理：鍍白鋅、工作溫度：-25℃~+125℃、接頭有一個隔斷閥，一般由碳鋼制成。
安全系列：4：1 密封件：標準NBR丁腈橡膠密封圈及純聚四氟乙烯支撐環.
